How to Join Sections in Kreative Kiwi Placemat Designs

Kreative Kiwi has some unique machine embroidered placemat designs.  I like them because they are stitched completely in the hoop and can be made larger than your largest hoop size.

The placemat I'm stitching is the Octagon Splendor Placemat.  It's a fun design that can appear three-dimensional when using light and dark fabrics. This placemat is stitched in five hoopings.

With each of Kreative Kiwi's placemat designs, they provide a step-by-step photo tutorial of the process.  This PDF tutorial steps you through the process of making the placemats, so if you are interested in trying one, don't be afraid.How to join Sections of Kreative Kiwi Placemat Designs - fb

Joining the sections in the hoop is the same for any of the Kreative Kiwi placemat designs and some of their other designs too.  This is probably the hardest part of making the placemat.

I was stitching one of the placemats and thought that someone may benefit from seeing a video of how to join the sections. The joining can be a bit tricky, but I'll give you some tips and show how it's done on this page and in the video linked below.



COMPLETE VIDEO TUTORIAL AVAILABLE! The video below is a preview with no audio, to watch the whole video tutorial, click the link How to Join Sections in Kreative Kiwi Placemat Designs to watch in Youtube.


Disclaimer: This post may contain affiliate links. We make a small commission on sales through the affiliate links, at no extra cost to you. Thank you in advance for your purchase and your support! Please see our full Affiliate Statement for more information.

INSTRUCTIONS for Joining the placemat sections

This tutorial shows how to stitch the joins in the last (fourth) section of the circle and center of the circle.

Below is a photo of some of the Octagon Splendor placemats I've completed.Join Embroidery Sections Finished Placemats

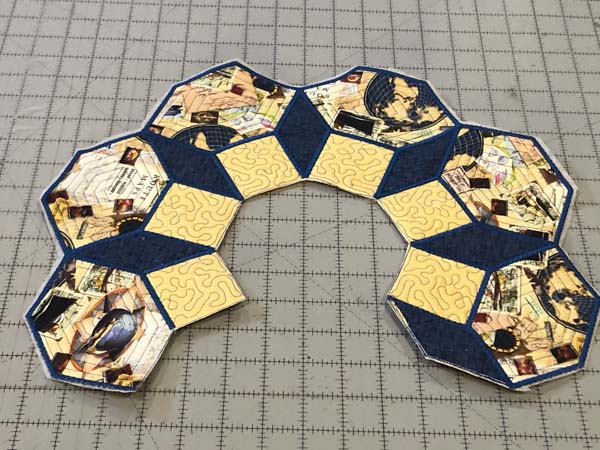

The photo below shows the placemat with the first three sections finished.  Each section has two hexagons and as you stitch each section, the previous section(s) are joined into the placemat, making it larger and more complete.Join Embroidery Sections Three Sections Finished

Step 1: Trim Edges to be joined

It's important to trim the edges that will be joined.  Using a scissor, trim the edge right up to the stitch line.  Be sure any extra batting is trimmed and out of the way.Join Embroidery Sections 22 Trim closely

Batting seems to be the most likely to stick out and not get stitched down completely if it's not trimmed properly.

As you are going along with the first four sections, carefully trim the inner circle to the line also. Once the circle is complete, it's harder to trim this inner circle.

STEP 2: Stitch the last section to join step

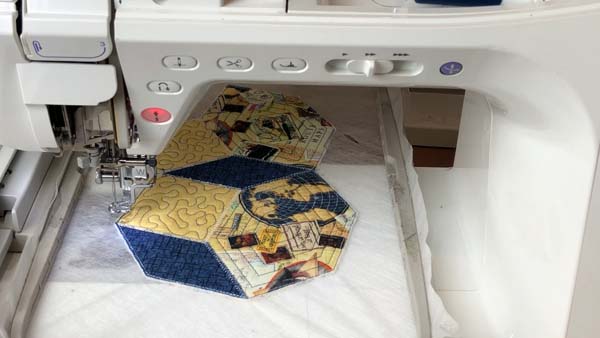

I've stitched the fourth section of the circle up to the first join step. The steps for stitching each section are mostly the same except for the joins.Join Embroidery Sections 19 Ready to Stitch Join

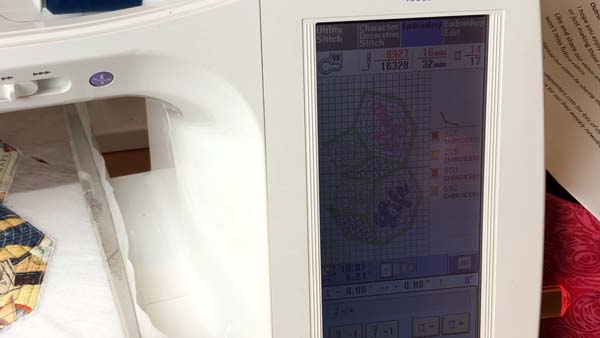

On the embroidery machine screen, the steps with the joins are indicated
with a short section of stitches.  For this placemat, the next step is shown as the stitching along one edge of the section.Join Embroidery Sections 20 Join Shown On Screen

STEP 3: stitch the First join step

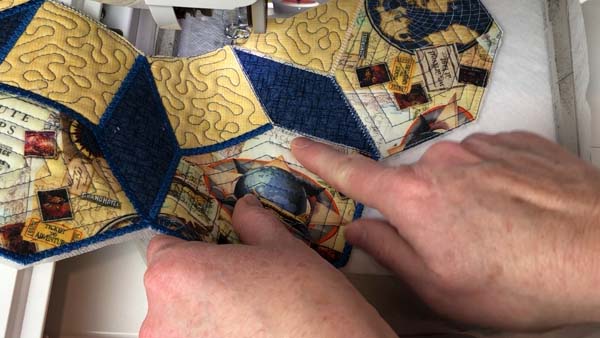

In the Kreative Kiwi instruction document, it states that they will butt together like a jigsaw.  They also recommend slowing your machine down while stitching the join stitches.Join Embroidery Sections 23 Place By Join

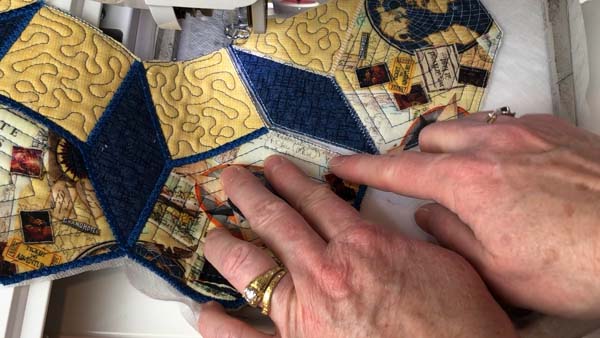

Place the previously stitched section of the placemat next to the join seam.  Align the start, end and middle points.  Then, I like to slightly overlap the piece on top of the seam in the hoop.Join Embroidery Sections 25 Butt sections together

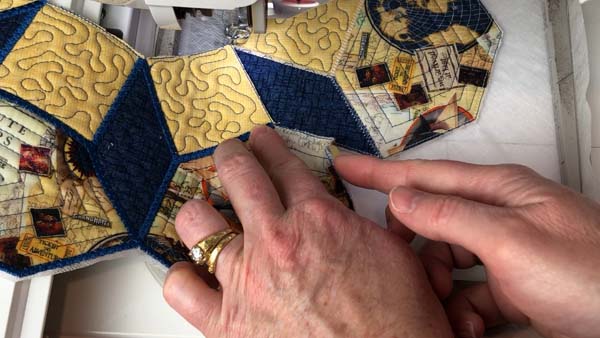

This overlap is only about 1/8" overlap.  Try to line up the stitch line on the piece being stitched with the stitch line on the edge of the piece being attached.Join Embroidery Sections 26 overlap sections slightly

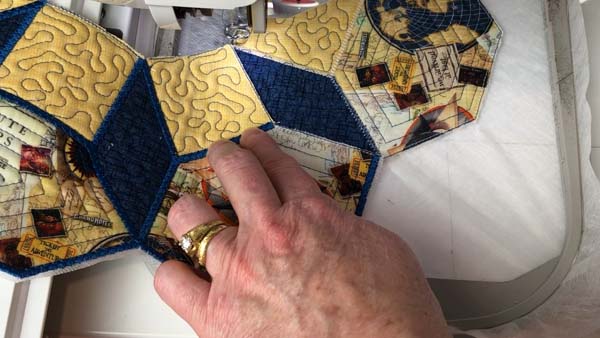

Hold the section in place as you start to stitch the step.  Keep your fingers out of the way when holding it!  We wouldn't want to stitch our fingers. Join Embroidery Sections 27 Hold In Place for Stitching

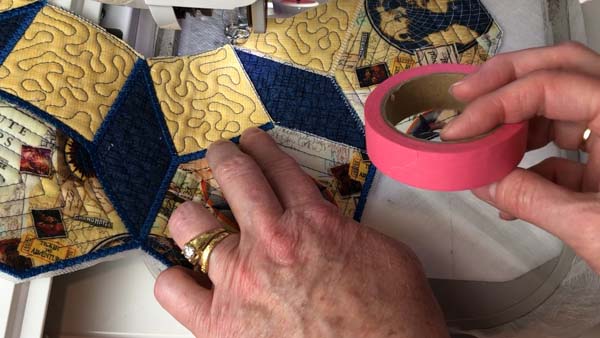

If you don't feel comfortable holding the section in place while it stitches, embroidery tape can be used to hold the two pieces together.Join Embroidery Sections 28 Can tape to hold.1

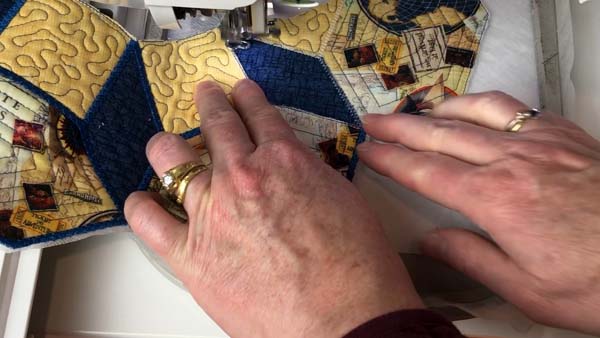

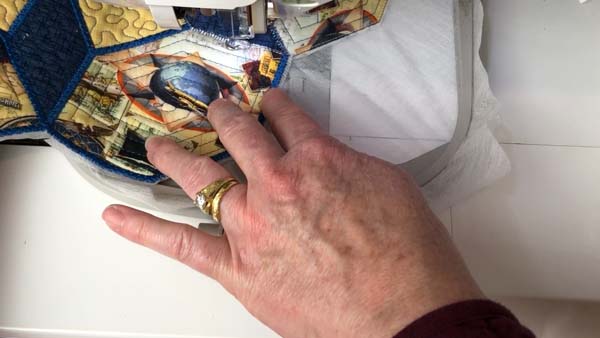

Start stitching the step.  If you are holding the section in place, let the machine move the hoop back and forth normally.  Keep watching as it's stitching to make sure the zig-zag is stitching over the seam on both sides.Join Embroidery Sections 29 stitch join step

If it's not stitching over the seam, stop the machine and take the stitches out and try again. Or you may just need to adjust the remainder of the seam so that it will continue stitching over the seam edges. Join Embroidery Sections 29 finish stitching join step

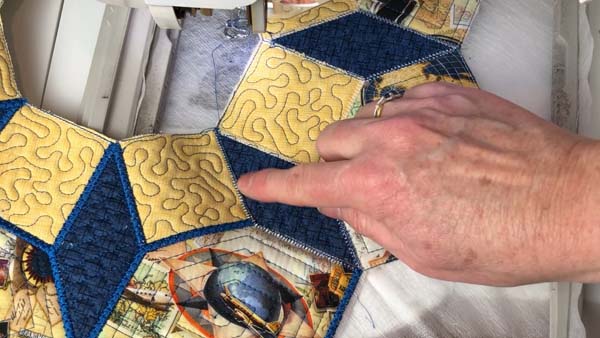

Below shows the seam stitched and the zig-zag covers both raw edges completely.  If you examine it after stitching the seam and it's not completely covered, it's best to take the stitches out and try again.Join Embroidery Sections 30 showing stitches

The satin stitch will be stitched after both joins are complete.  The satin stitch is a slight bit wider than the zig-zag stitch.

STEP 4: Continue to the next join

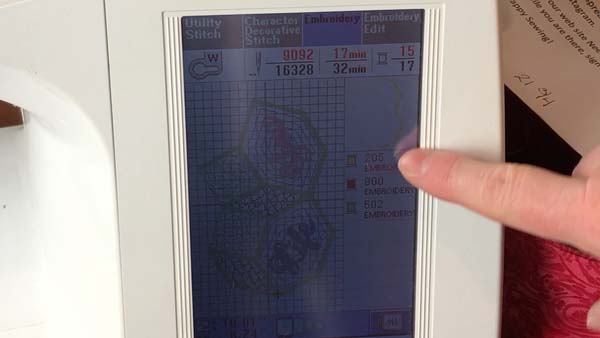

The next stitch will stitch the zig-zag along the outside edge of the section and stop at the next join.  It's shown in a yellow color which is very hard to see on the screen.Join Embroidery Sections 33 show next step

The other three sections have only one join and it's at the top of the design in the location of the next stitch.

STEP 5: Last Join of the circle

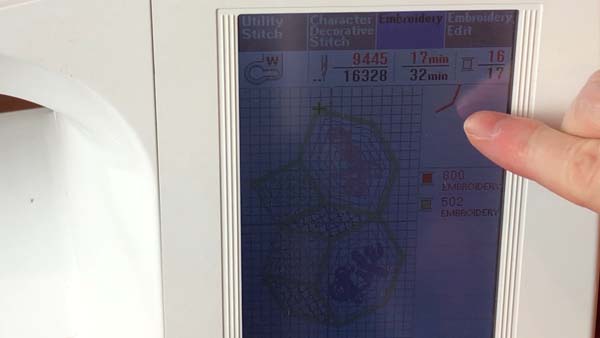

The last join will complete the circle of the placemat. As before, it's indicated on the screen as an angled line.Join Embroidery Sections 35 show last join

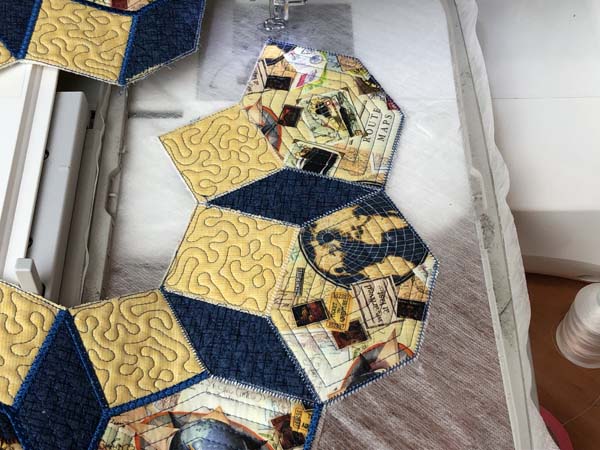

The embroidery machine has stopped at the edge of the join.Join Embroidery Sections Last Join

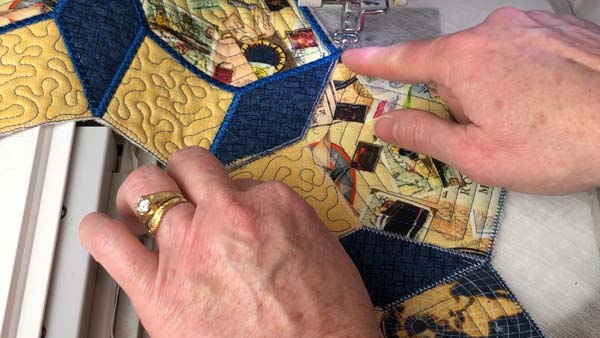

Bring the other side of the circle up to the edge of the section in the hoop. Line up the edge at the center, outside and the point. As before, overlap the placemat slightly over the section in the hoop.Join Embroidery Sections 37 Align fabric

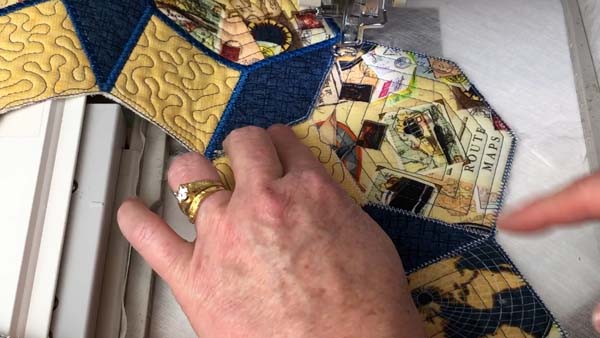

Match the stitching lines and hold or tape it in place.  Stitch the zig-zag over the raw edges keeping your fingers out of the way. Join Embroidery Sections 38 stitch join

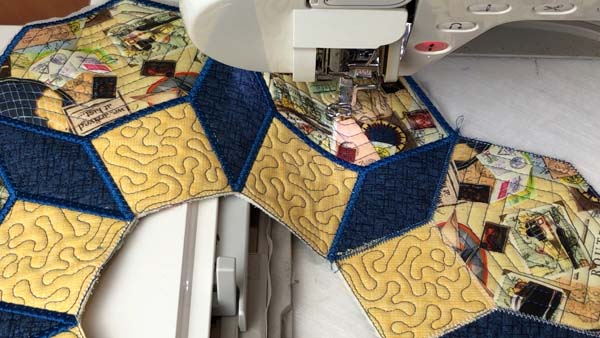

The circle is completed.  If the join did not stitch correctly, take it out now and try again.Join Embroidery Sections 41 Showing stitches

STEP 6: Finish the satin stitching on the last section

The next step will stitch the satin stitch and decorative stitch to complete the fourth section of the placemat.

STEP 7: Stitch the Center Section

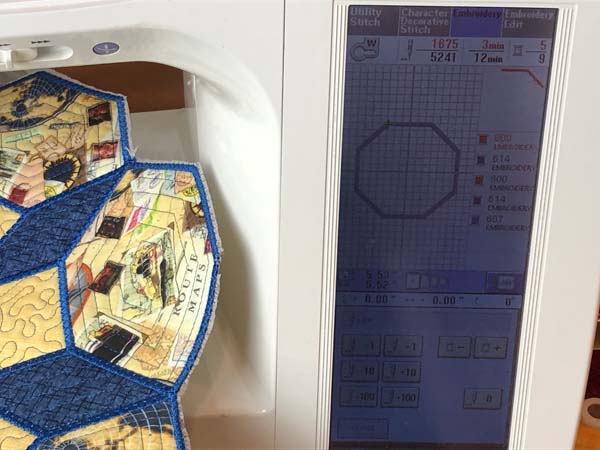

The fifth hooping is for the center of the placemat.  Start this section by loading it into your embroidery machine.  Hoop water soluble stabilizer and stitch the center section until the first join.

STEP 8: Join the Center to the Placemat

The next stitch is the first two sections of the join.  To make the center join easier, Kreative Kiwi splits this step into several embroidery steps.  This allows you to line up each section, stitch and then line up the next section.Join Embroidery Sections Center Section Stitch

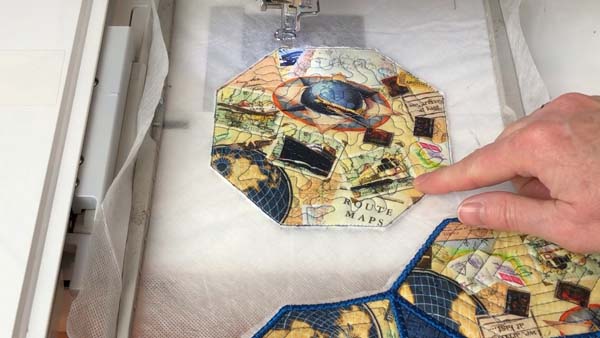

This step stitches the zig-zag as with the other joins. The photo below shows the center section ready to be joined to the placemat.Join Embroidery Sections 48 center stitched ready for joins

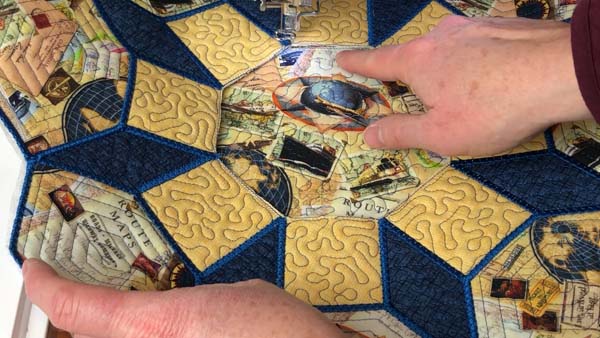

Place the finished circle of the placemat over top of the center section.  Align the edges and the corners.  As before, slightly overlap the raw edges aligning on the stitching line.Join Embroidery Sections 50 align around center

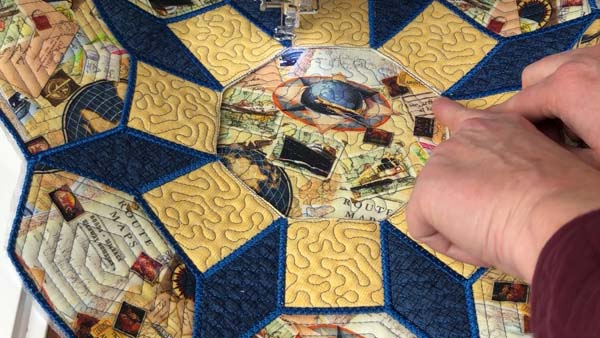

Hold or tape the placemat in place and stitch the first section of the circle to attach it together.  This step will stitch the first two sides of the octagon.Join Embroidery Sections 51 hold in place

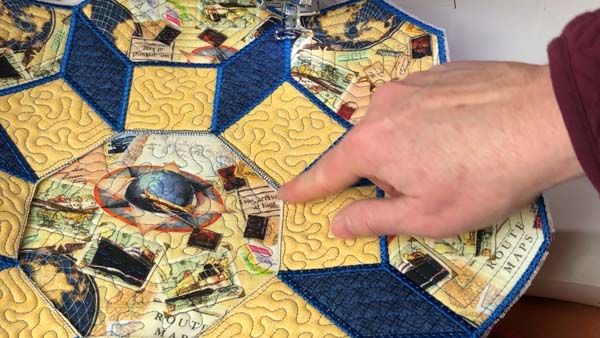

The photo below shows the first two sections completed.  If the stitches didn't cover the raw edge completely, the stitches can be removed and the placemat adjusted and stitched again.Join Embroidery Sections 56 second section to stitch

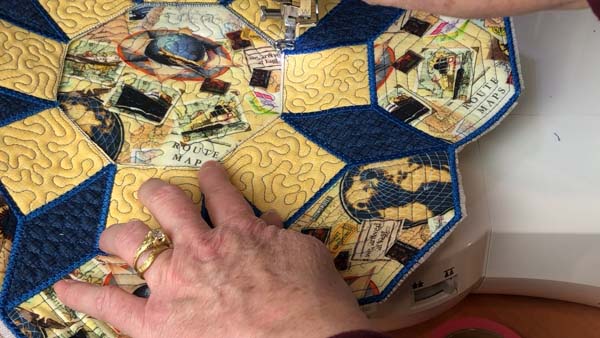

Once it looks good, continue to the next stitch which will stitch two more sides.  Move the fabric as needed to get it lined up and the stitches will cover the raw edges.Join Embroidery Sections 54 show stitching

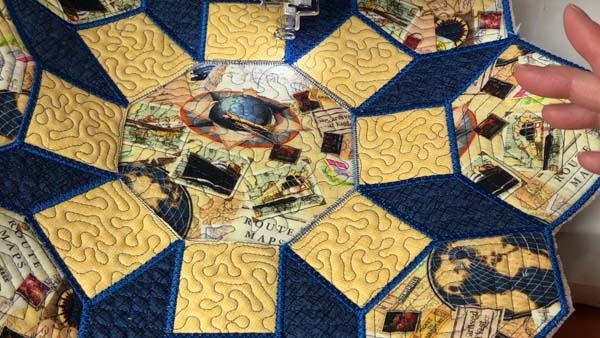

The photo below shows the first two sections stitched.Join Embroidery Sections 58 show second section stitched

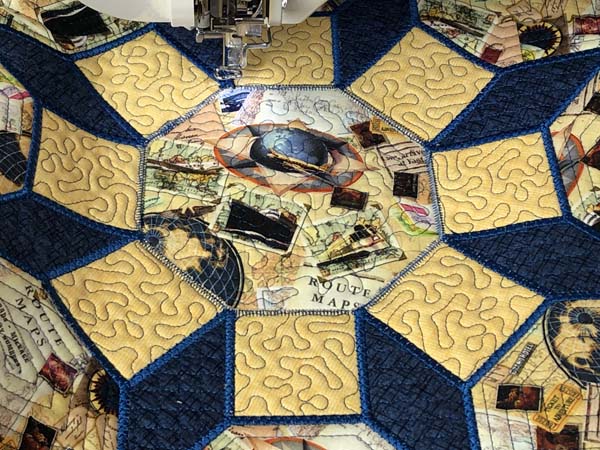

Continue to stitch the center to the placemat in the same way until it's attached all the way around.Join Embroidery Sections Center Joined

The last step in the design will stitch the satin and decorative stitches around the center.  These stitches will be slightly larger than the zig-zag and cover it completely.

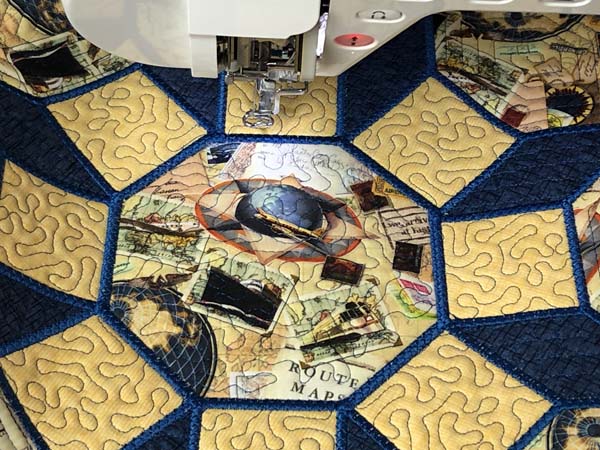

The placemat is completed!Join Embroidery Sections Center Satin Stitch Completed

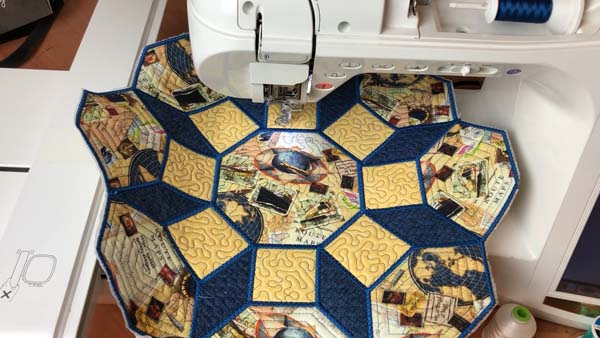

I hope you enjoyed seeing how to join the sections for one of these Kreative Kiwi placemat designs.Join Embroidery Sections 61 placemat complete

If you would like to see some of the finished placemats, visit our page Octagon Splendor Placemats.

I previously made the Kreative Kiwi Swirly Placemats. If you would like to see those placemats, click the link. Swirly Placemat


QUESTIONS?

If you have any questions about this project, contact us through the YouTube Video comments or our Contact Us page. We respond to questions in e-mails and YouTube comments regularly.
